The 2 HP centrifugal water pump is designed for efficient water transfer and general-purpose pumping applications where reliable flow and moderate pressure are required. With a 1.5 kW motor, the pump can deliver a maximum flow of 24 m³/h and achieve a maximum head of 22.5 metres.
The pump is designed primarily for clean water and liquids with properties similar to water. It can be used in agricultural irrigation, greenhouse water supply, breeding and livestock facilities, general water transfer and other equipment requiring continuous water circulation or supply.
Performance
The pump provides:
- Maximum flow: 24 m³/h
- Maximum head: 22.5 m
- Maximum suction: 7 m
- Motor power: 2 HP / 1.5 kW
- Operating speed: 2860 rpm
- Connection: 2″ × 2″

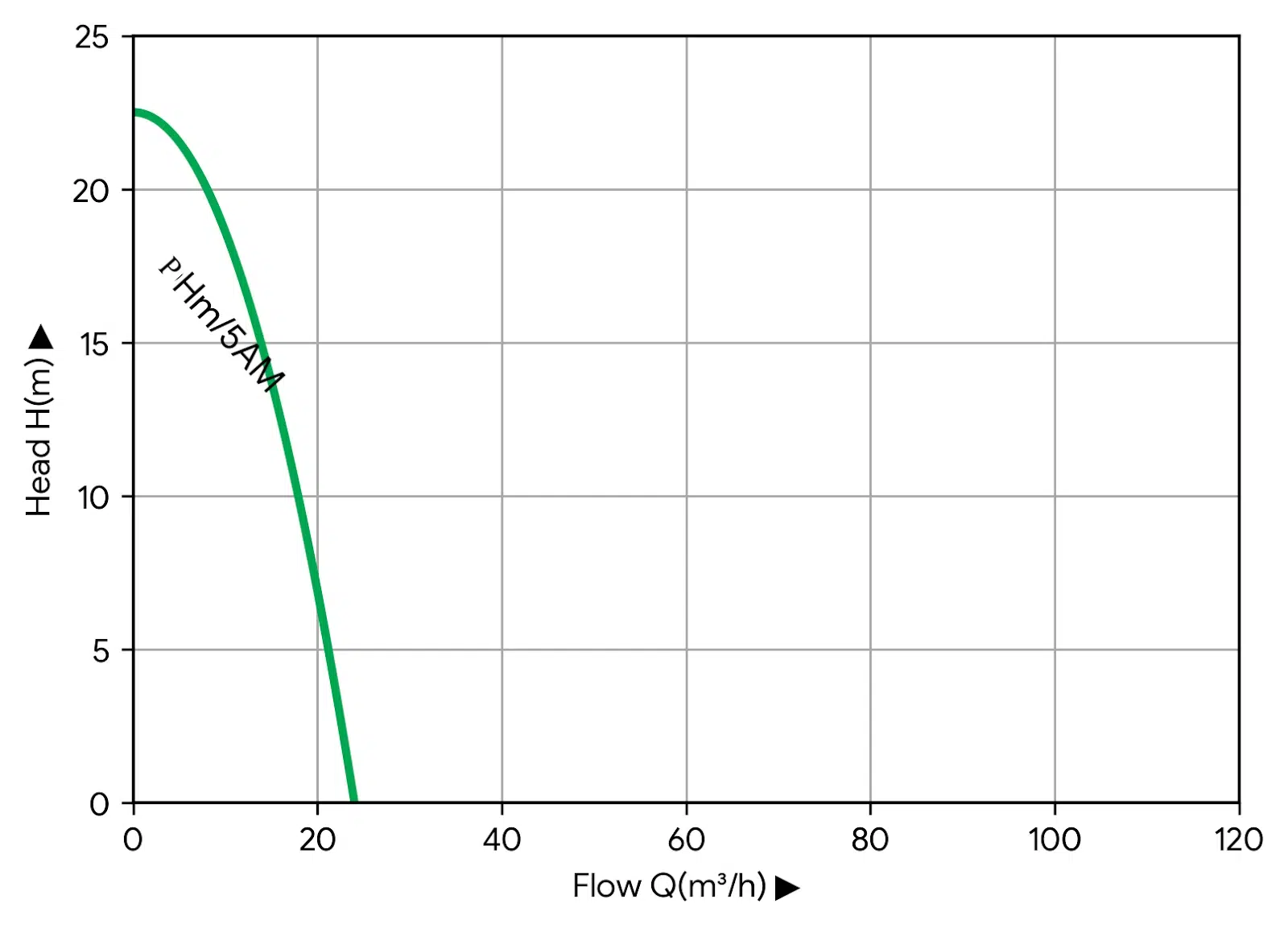

Performance Curve
Use the actual manufacturer-supplied performance curve rather than creating an estimated graph.
Construction Table
| Component | Material / Specification |
|---|---|
| Pump Body | Cast Iron |
| Impeller | Brass |
| Coupling | Cast Iron |
| Motor Casing | Aluminium |
| Motor Winding | 100% Copper Wire |
| Bearing | C&U |
| Shaft | 45# Steel or SS304 Welding |
| Thermal Protection | Thermal Overload Protector |
| Insulation Class | Class B |
| Protection Rating | IP44 |
| Duty | Continuous |
Suitable Applications
The DHm/5AM is specified for:
- Clean water transfer
- Agricultural irrigation
- Greenhouse irrigation
- Water supply
- Tank-to-tank water transfer
- General water circulation
- Breeding facility water supply
- Equipment water supply
- General drainage applications
